Model : AHLR03

Cleaning test report of AHLR03 applied to ESC Parts (TEL8500/VIA ETCH)

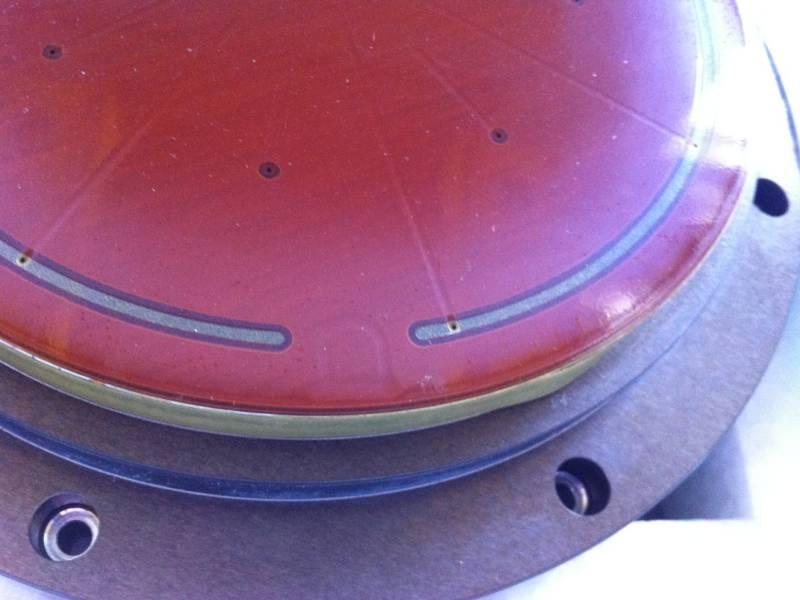

  1. There is a white film-like deposit on the ESC Parts before cleaning.



  2. Use different cleaning agents to dab on the white film-like attachment, wipe it off with a dust-free cloth after 1 minute, and then wipe it clean with another new dust-free cloth dipped in IPA. Observe the position where the agent has been applied, and whether the white film-like attachment is obviously removed, so as to find out the appropriate and effective cleaning agent. It was found that AHLR03 can effectively remove the white film-like deposits on ESC Parts.

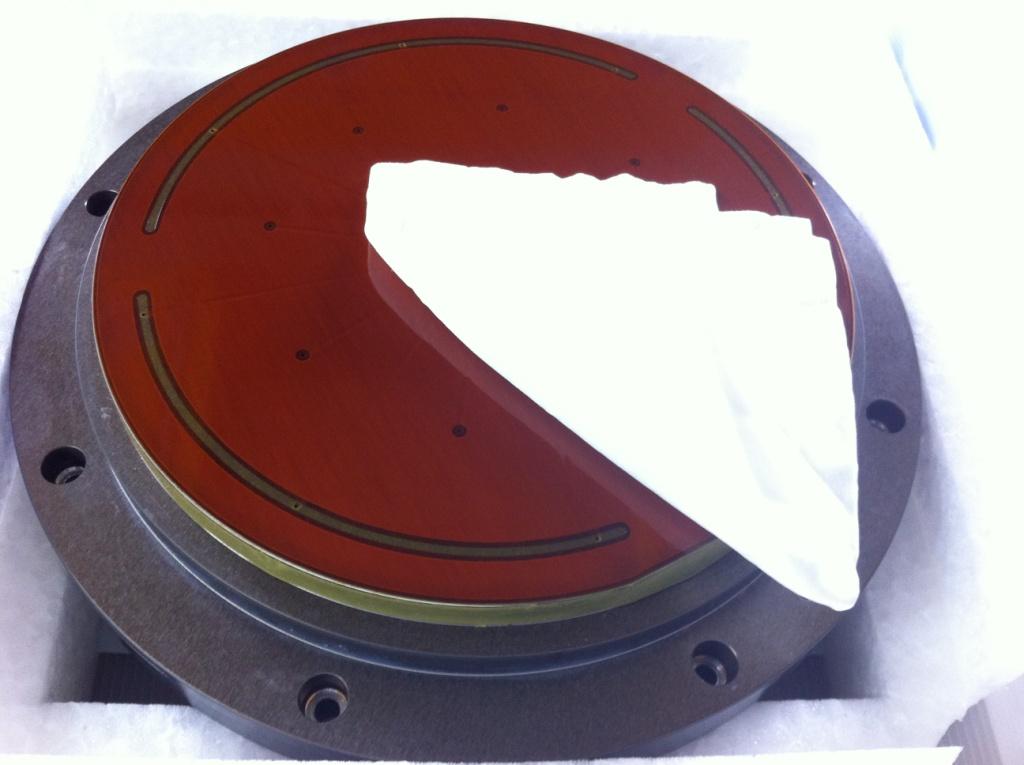

  3. Wipe ESC Parts with AHLR03 with a dust-free cloth, you can find that the dust-free cloth quickly turns yellow and becomes dirty. The white film-like deposits on ESC Parts are easily wiped off.

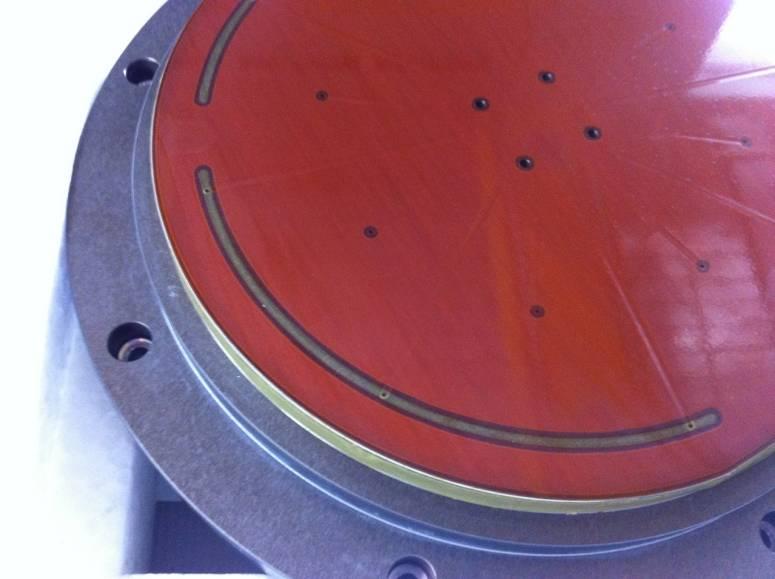

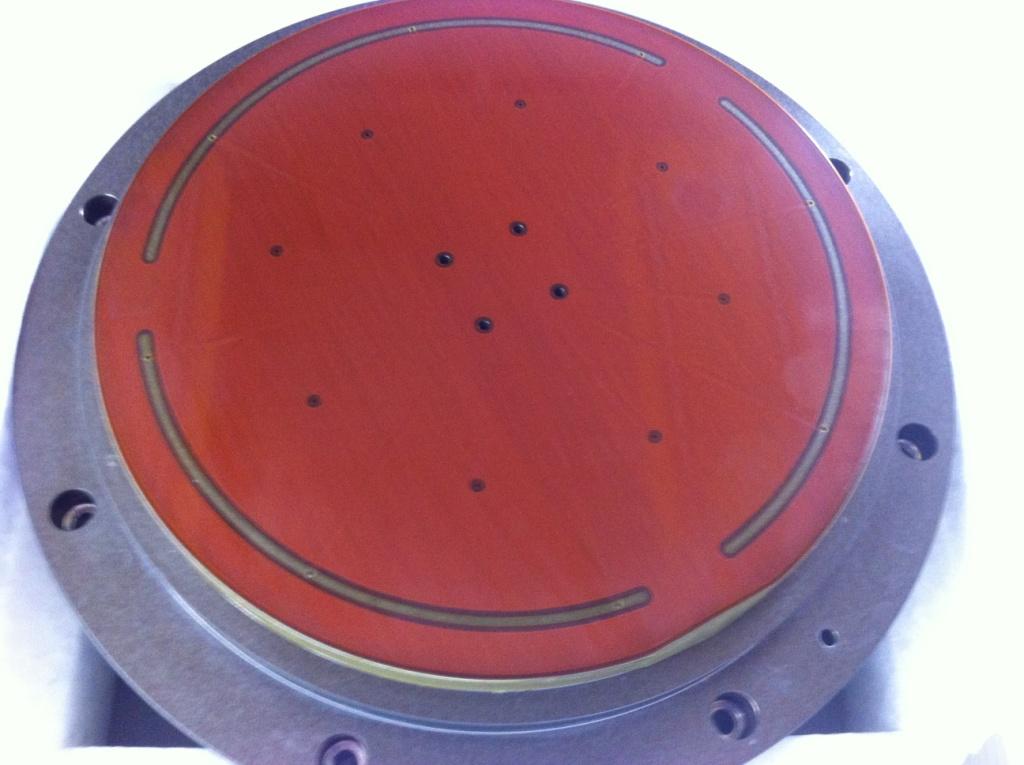

  4. After wiping, use another new lint-free cloth dipped in IPA to wipe clean. After the IPA evaporates and dries quickly, you can clearly see that the white film-like attachment on the ESC Parts is obviously lightened.

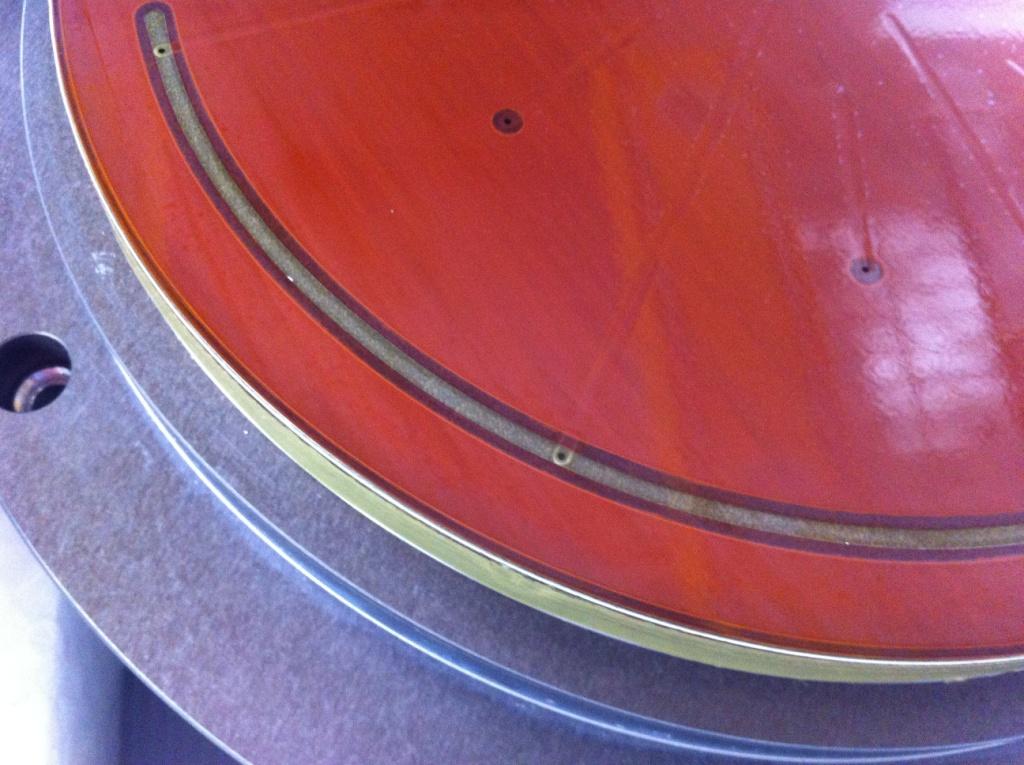

  5. Zoom in to see.

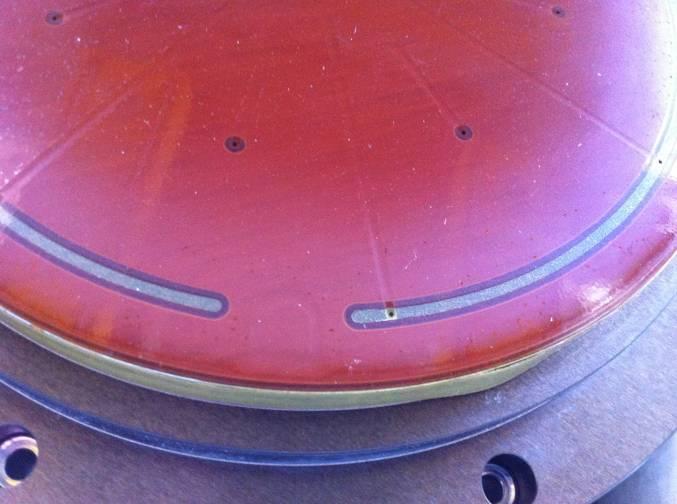

  6. Compare. In the photo below, before wiping on the left and after wiping on the right.
