Before cleaning, there are four oxygen-free copper blocks provided by the customer. The customer requests to soak COP01 after soaking the copper blocks No. 1 and 2. For copper blocks No. 3 and 4, the customer requires that only COP01 be soaked.

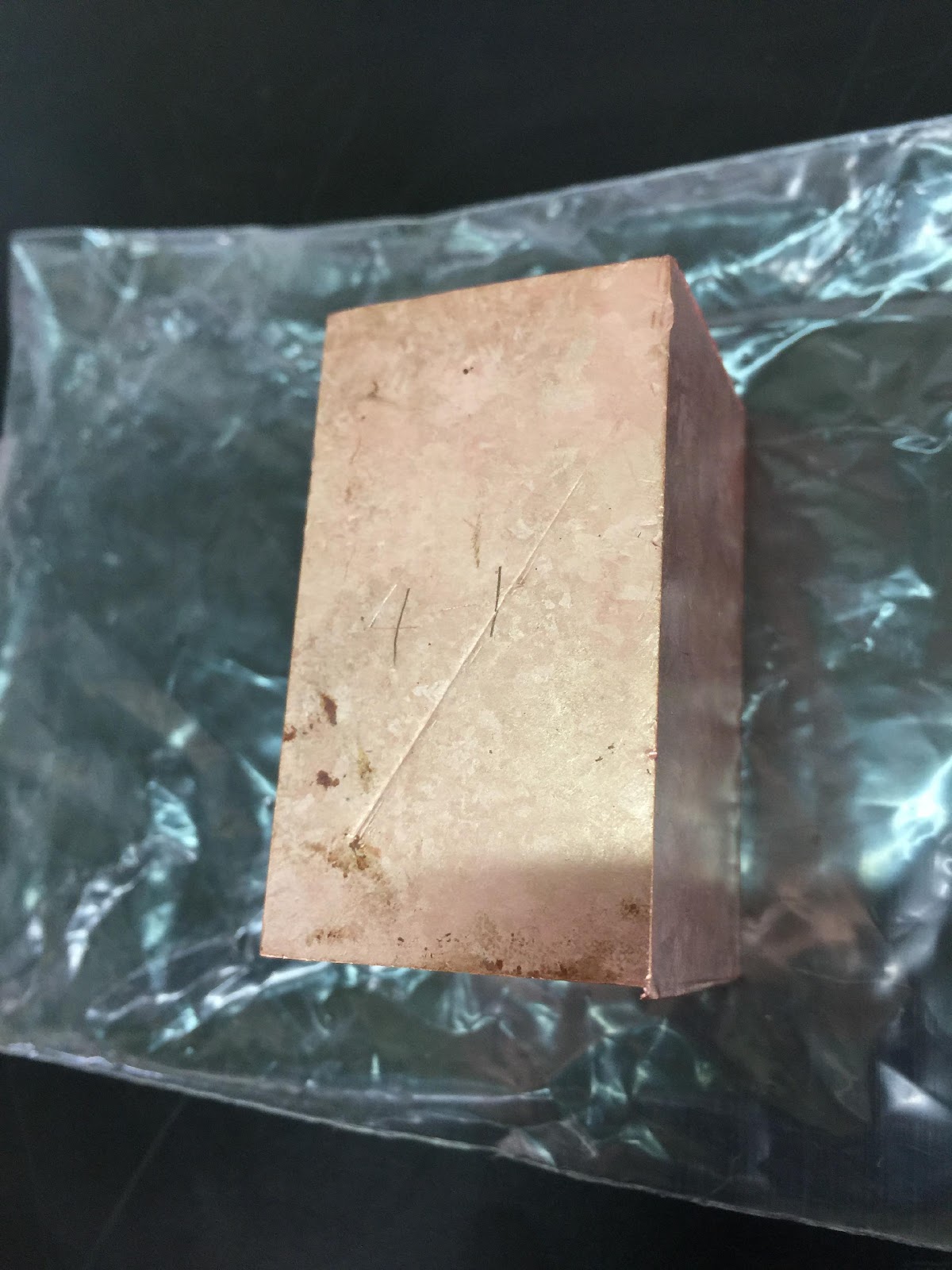

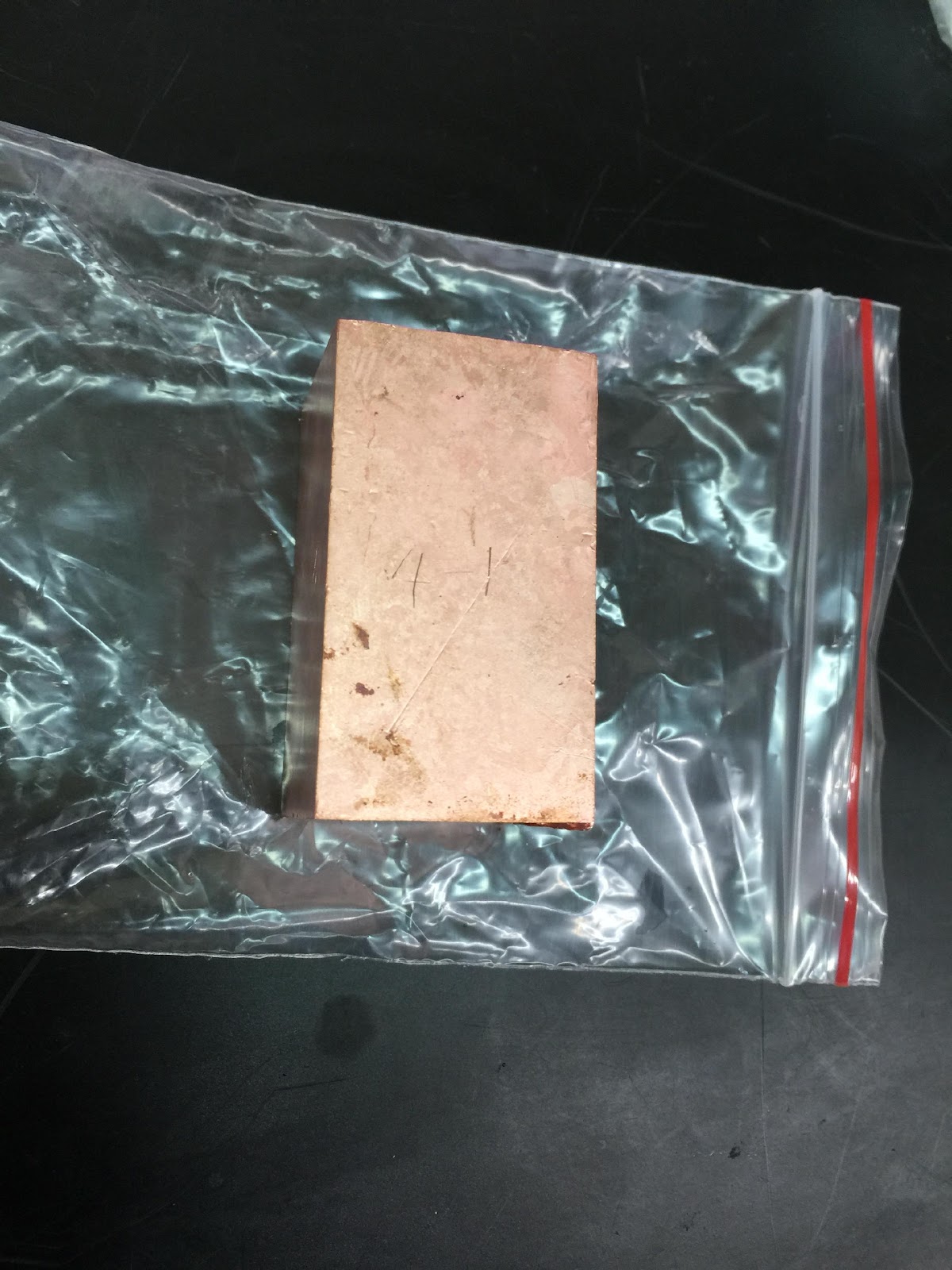

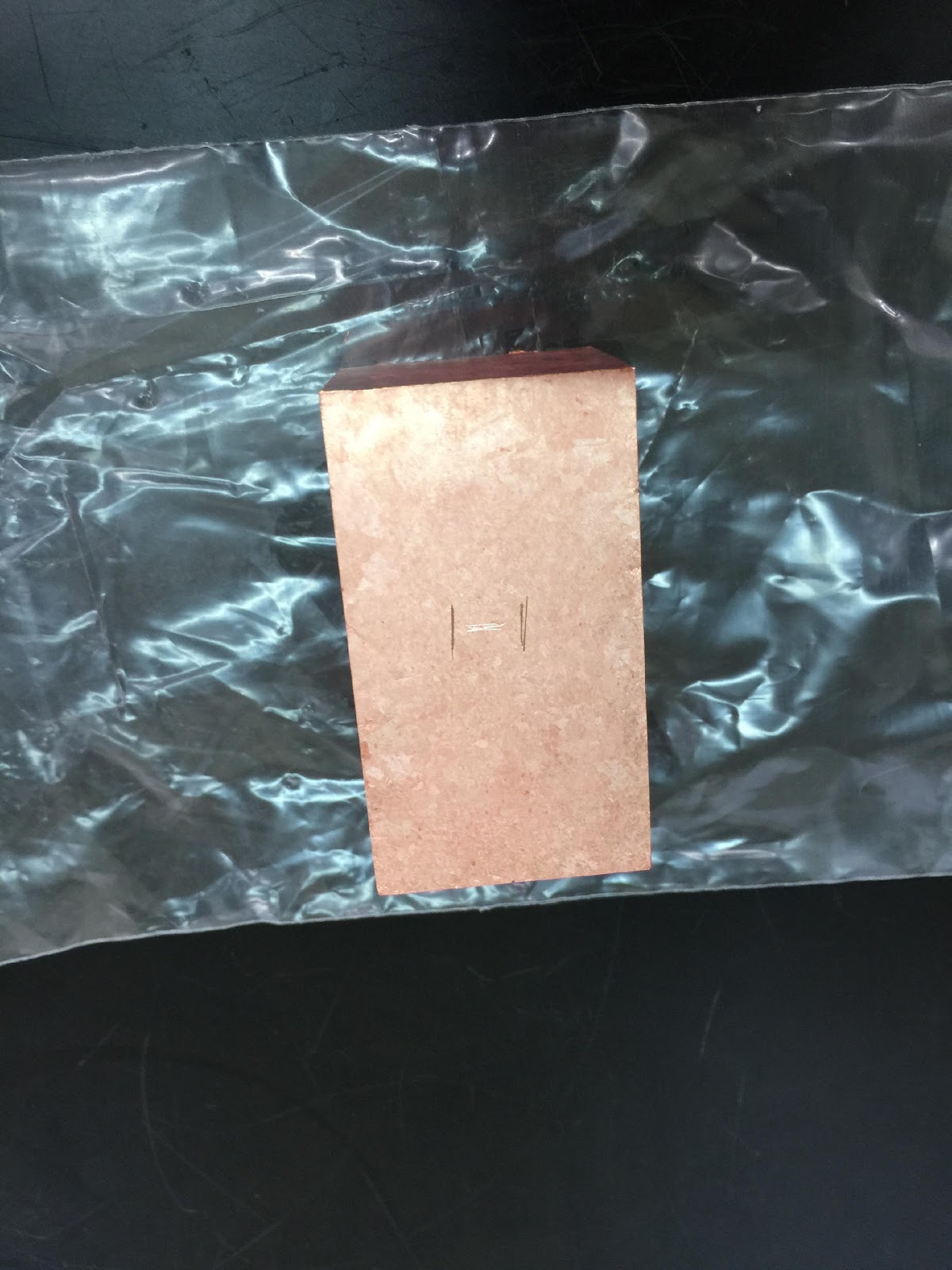

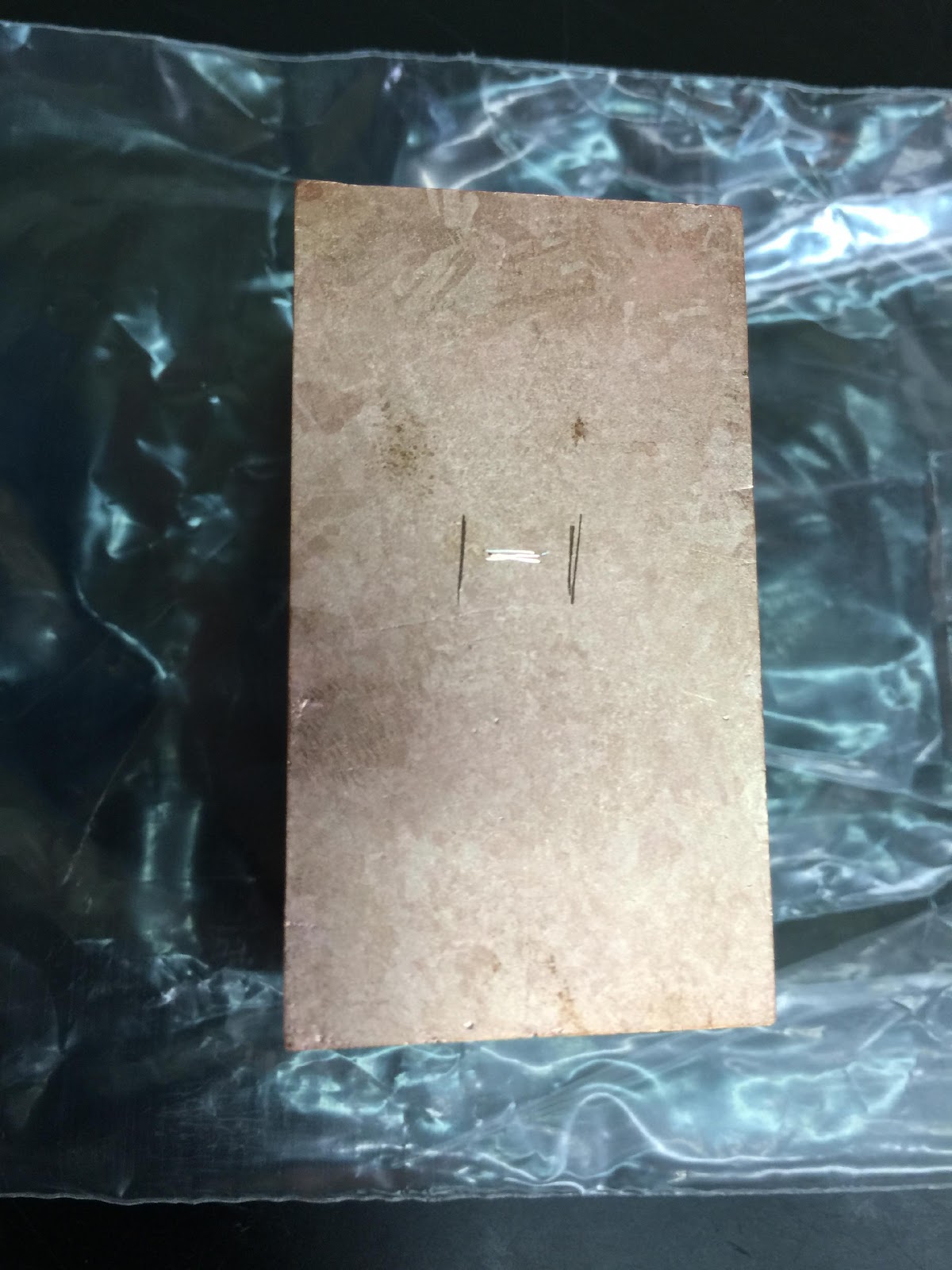

number 1

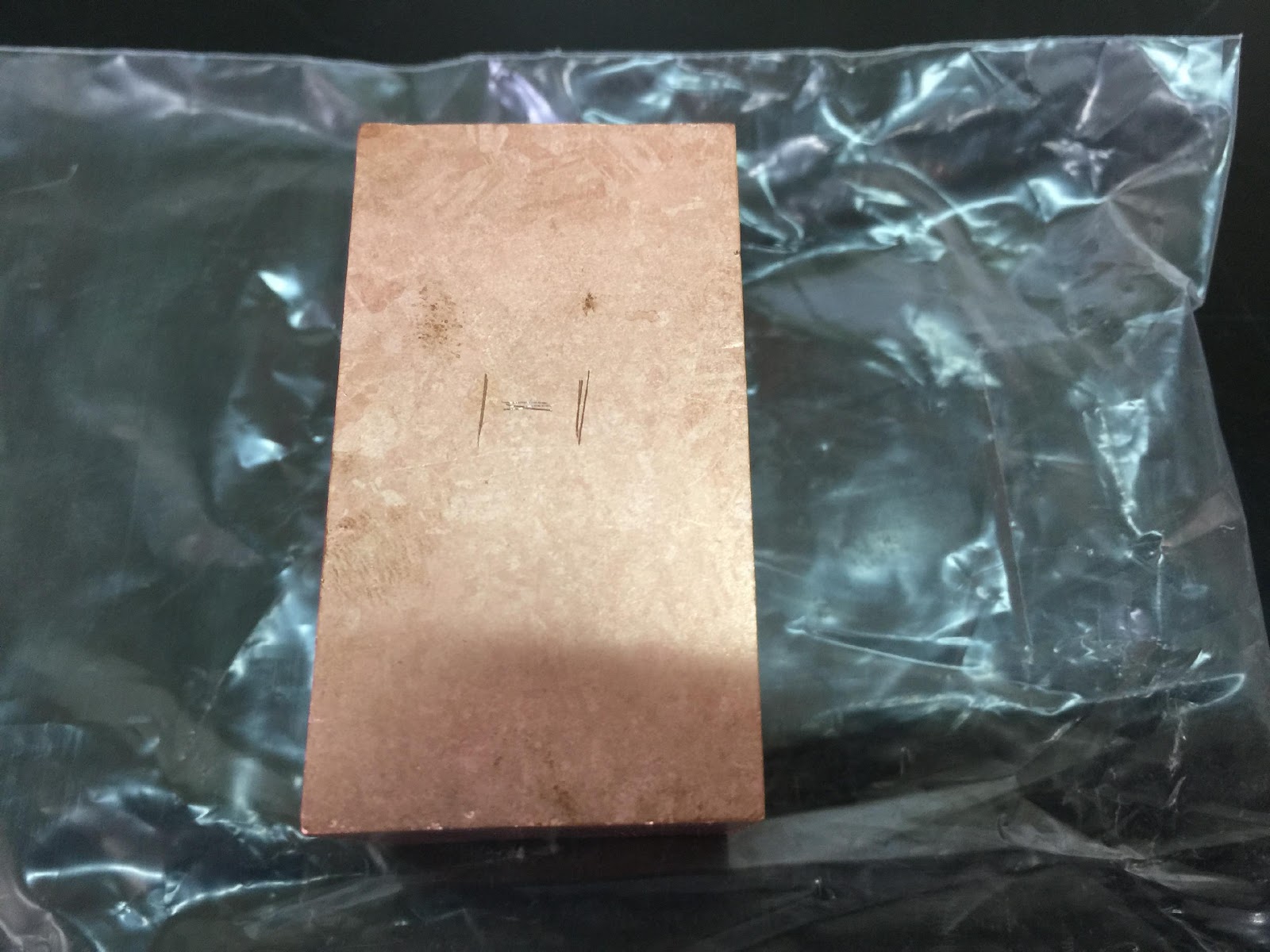

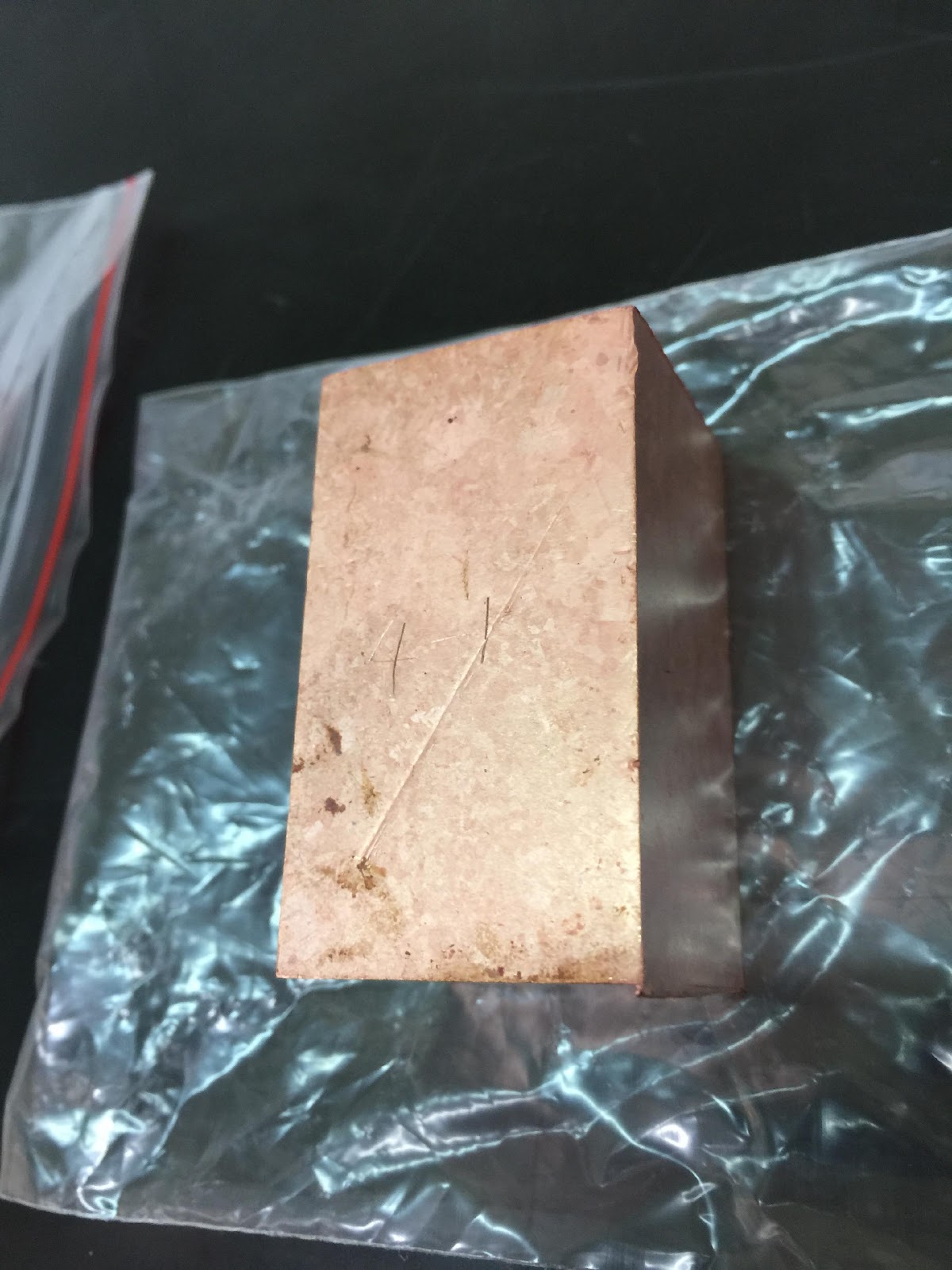

number 2

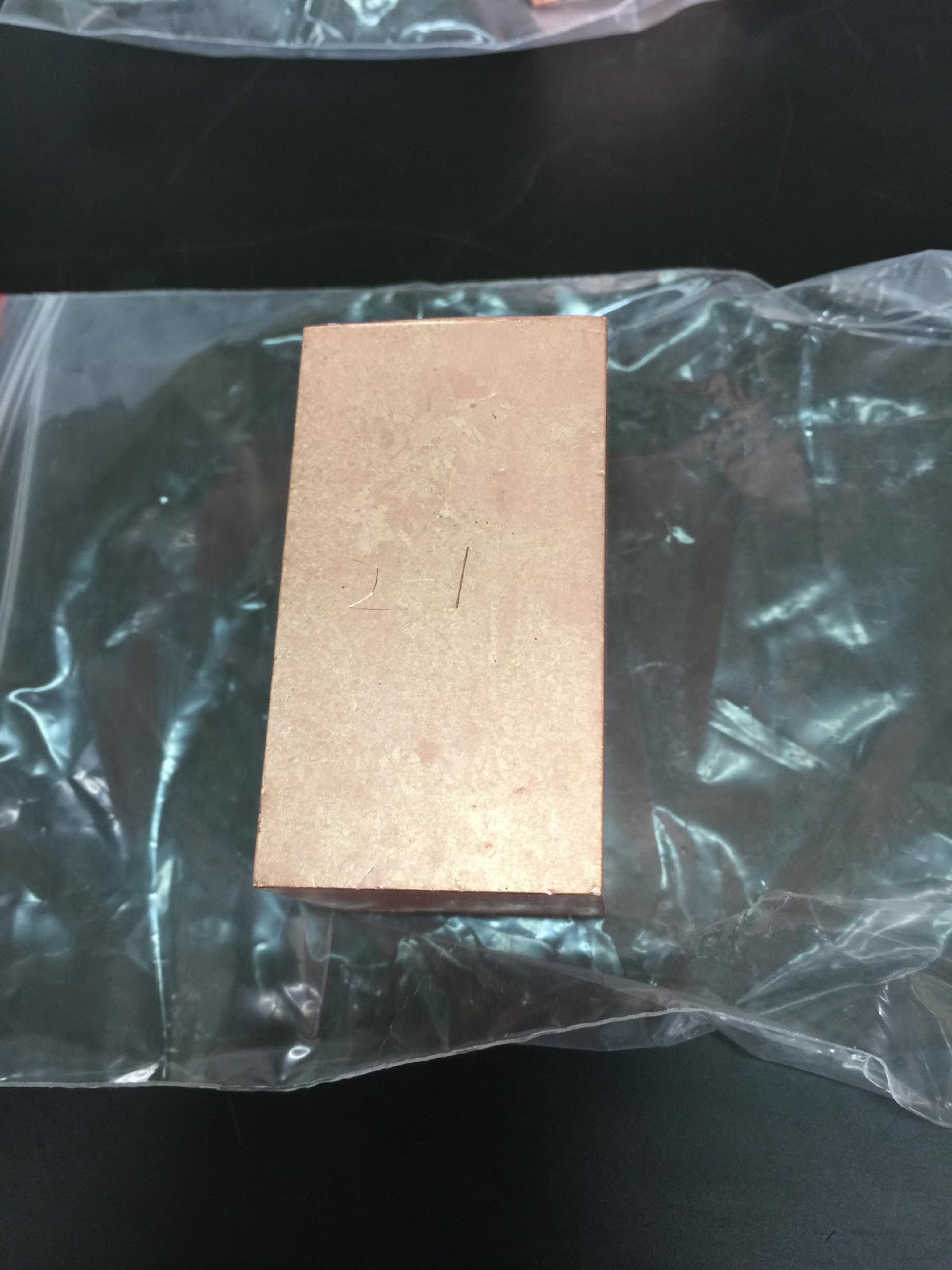

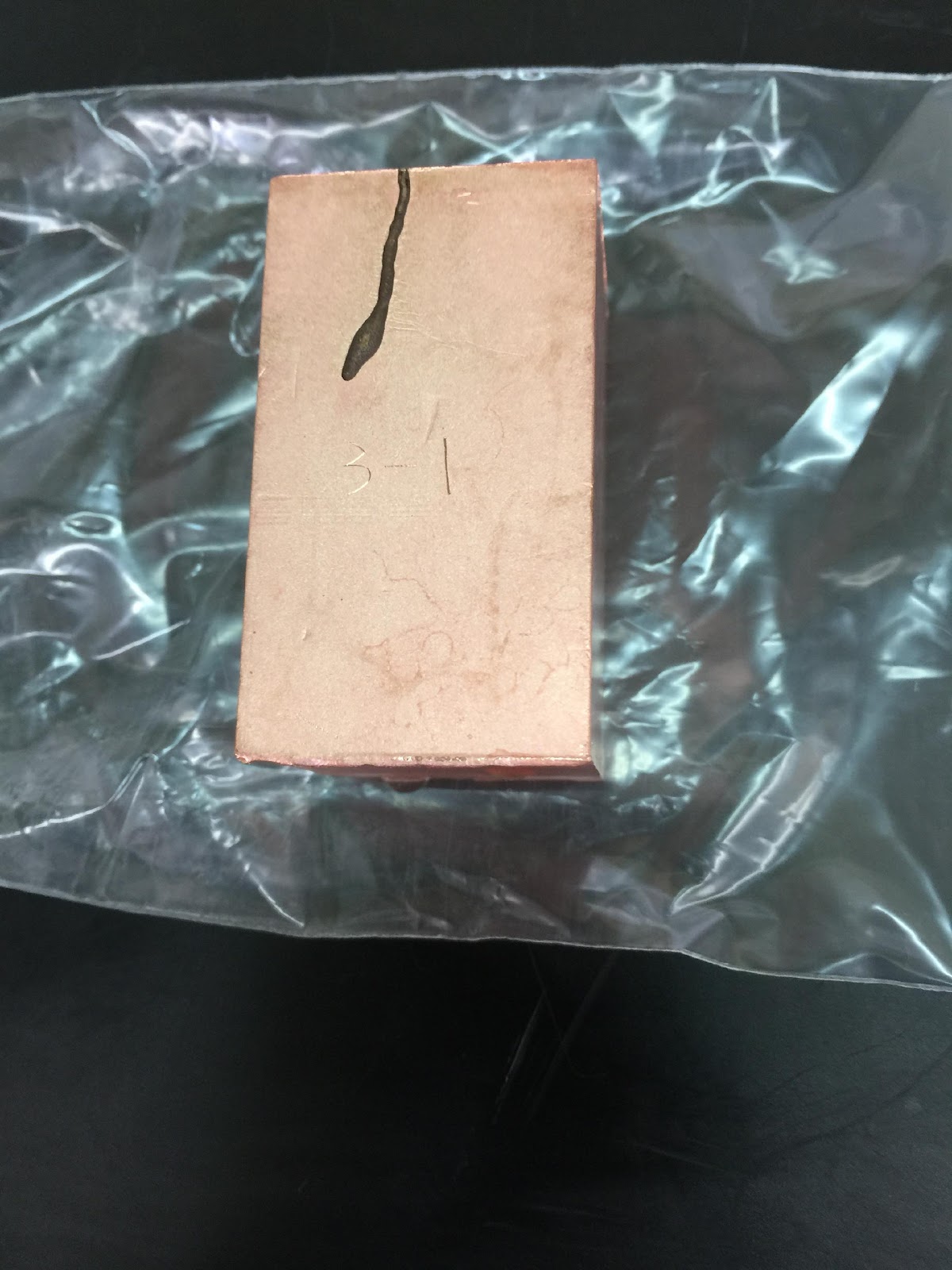

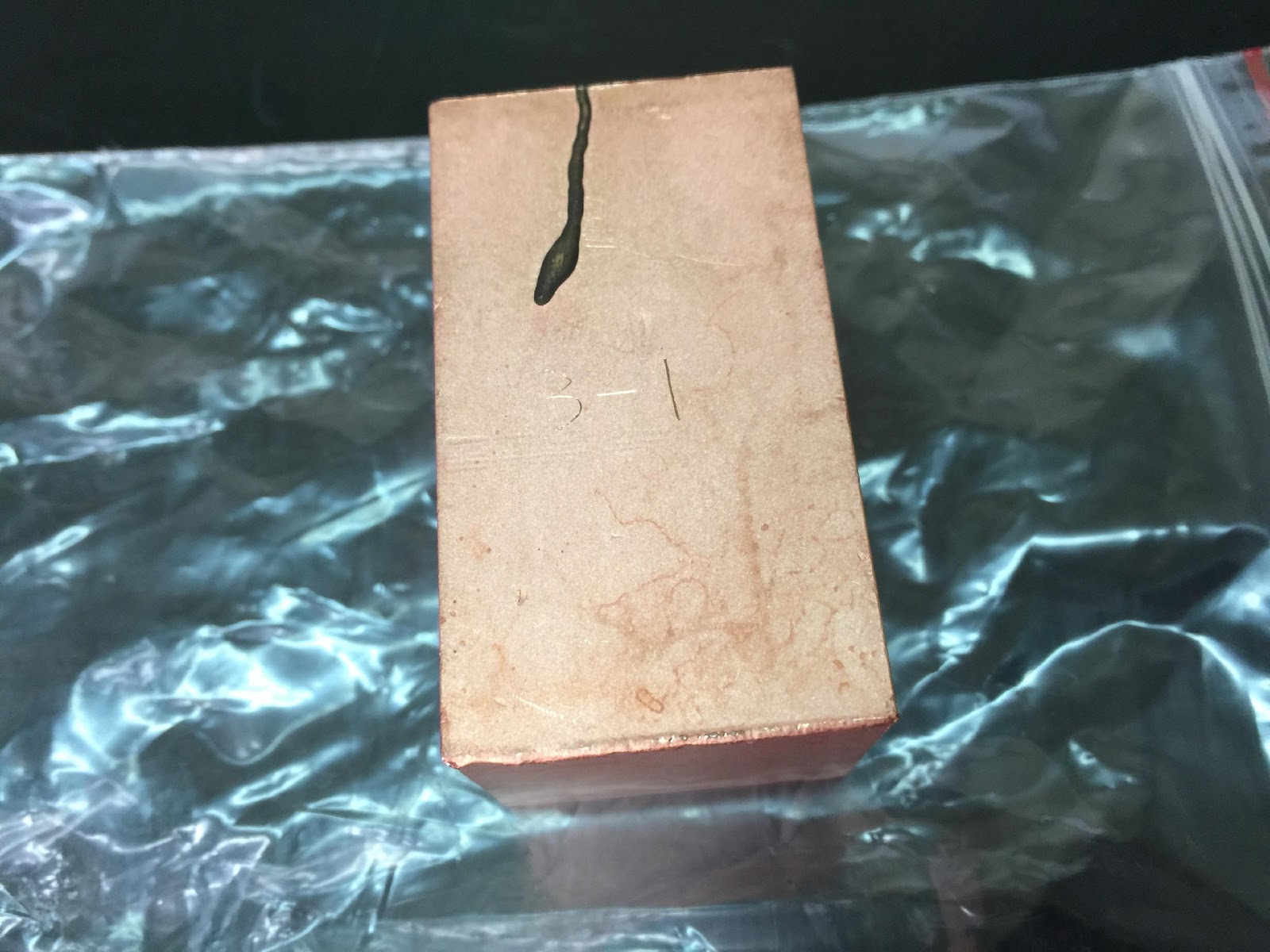

number 3
number 4
-
in room temperature. Soak with 10% copper oxide reducing agent COR01.
COR01 is a reduction method to reduce copper oxide to copper, and has the effect of surface agglomeration, which can protect the copper alloy from oxidation.

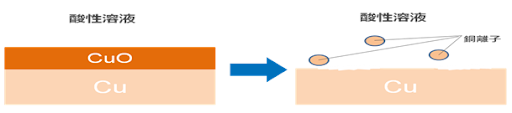

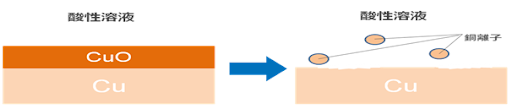

以酸腐蝕溶解除氧化銅的方法。

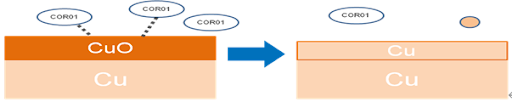

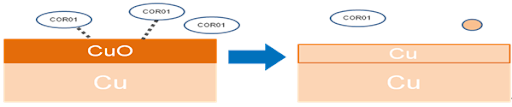

Copper oxide reducing agent COR01 acts on copper alloy is a reduction method.
-
It may be that the oxygen-free copper block provided by the customer is slightly oxidized. After soaking for 2 minutes, it is found that the darker spots on the original copper block have disappeared.

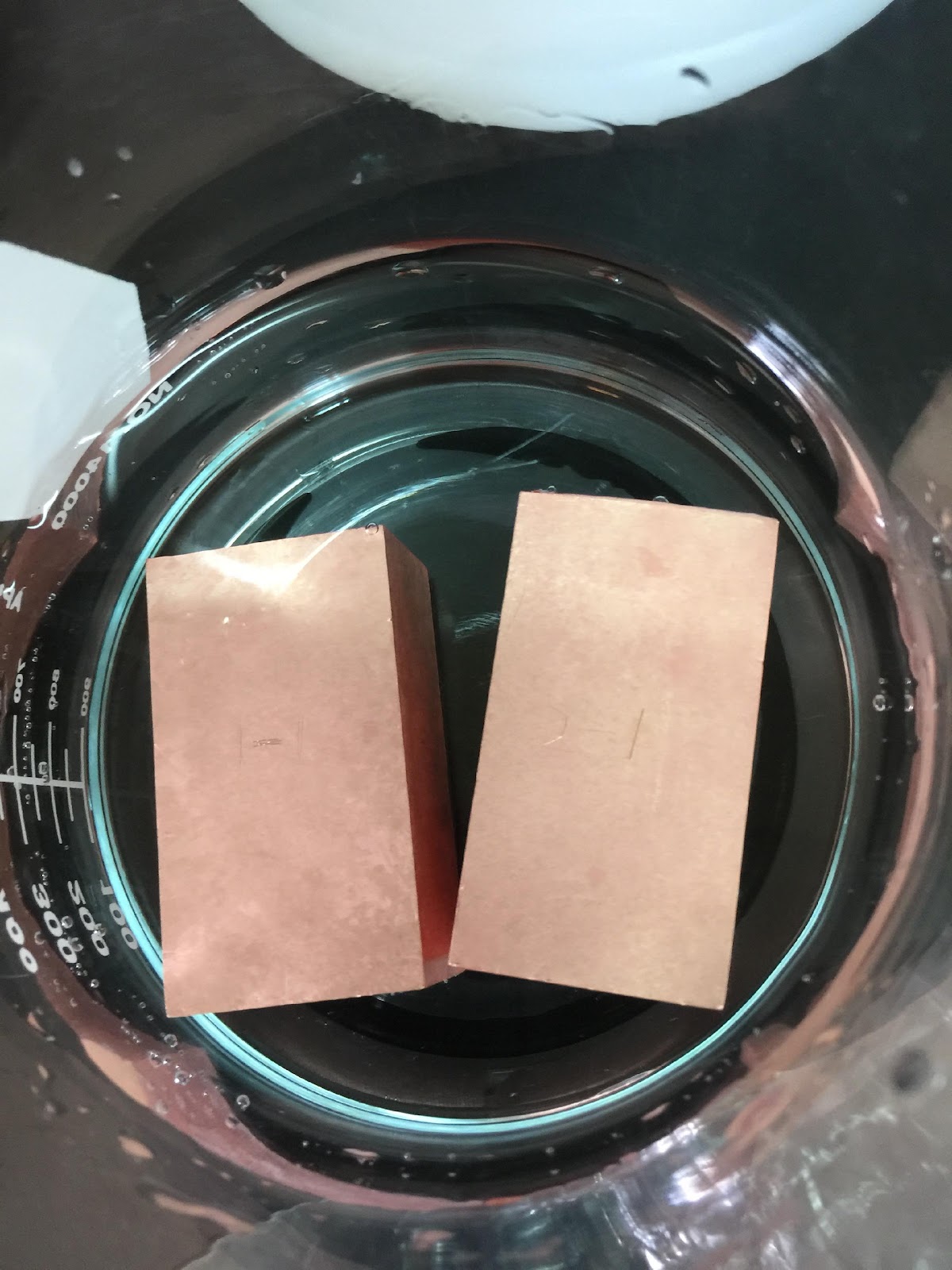

Number 1 is on the left and number 2 is on the right.
-

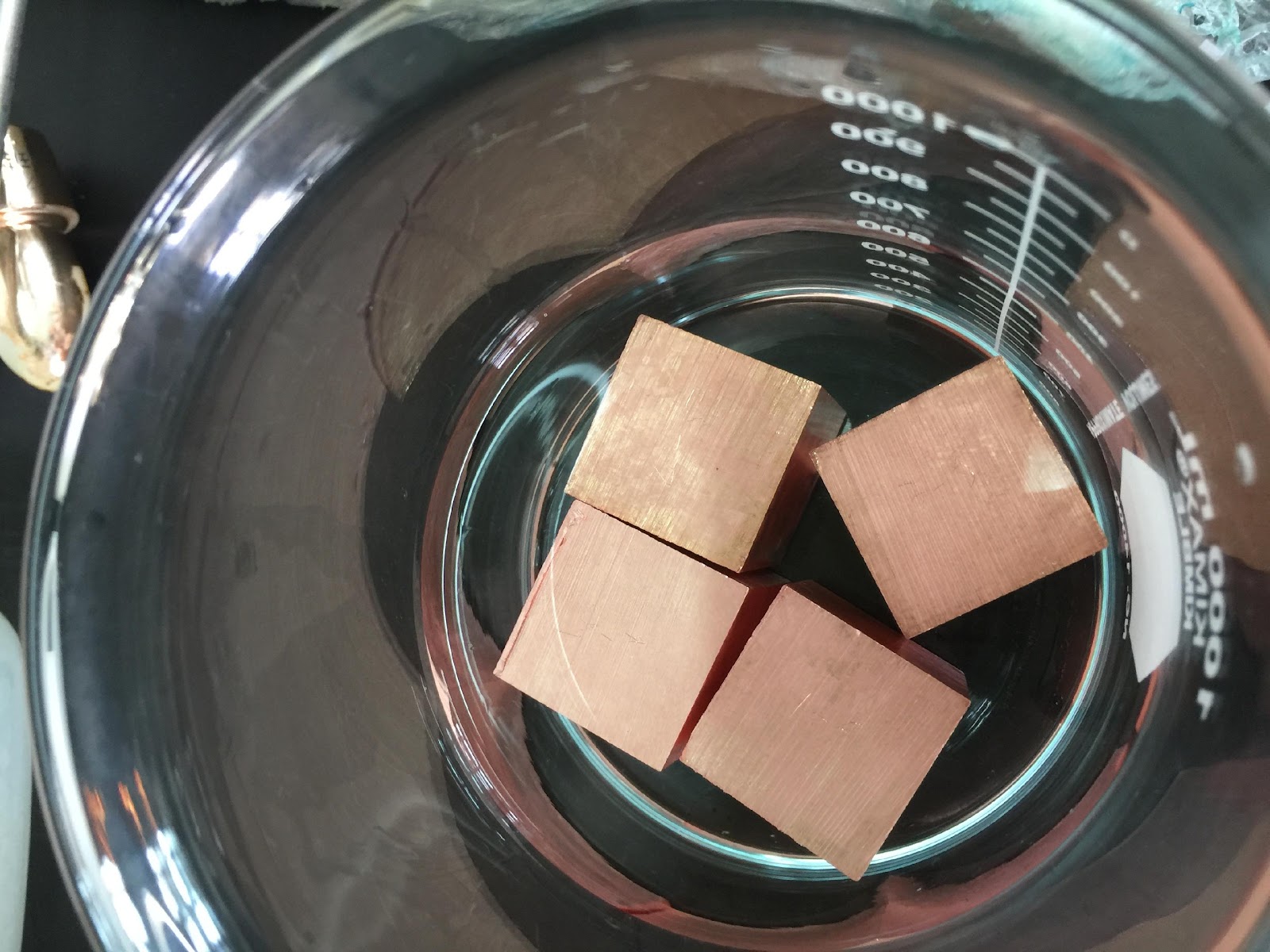

After soaking for 5 minutes, take it out and rinse it with clean water. No. 1, 2 and No. 3, 4 oxygen-free copper blocks are placed in 10% COP01 copper protective agent at room temperature. Soak for 10 minutes.
-
take out. No more flushing, just air dry. Compare:
Process with COR01+COP01:
Before processing with COR01+COP01
after treatment
Only deal with COP01:

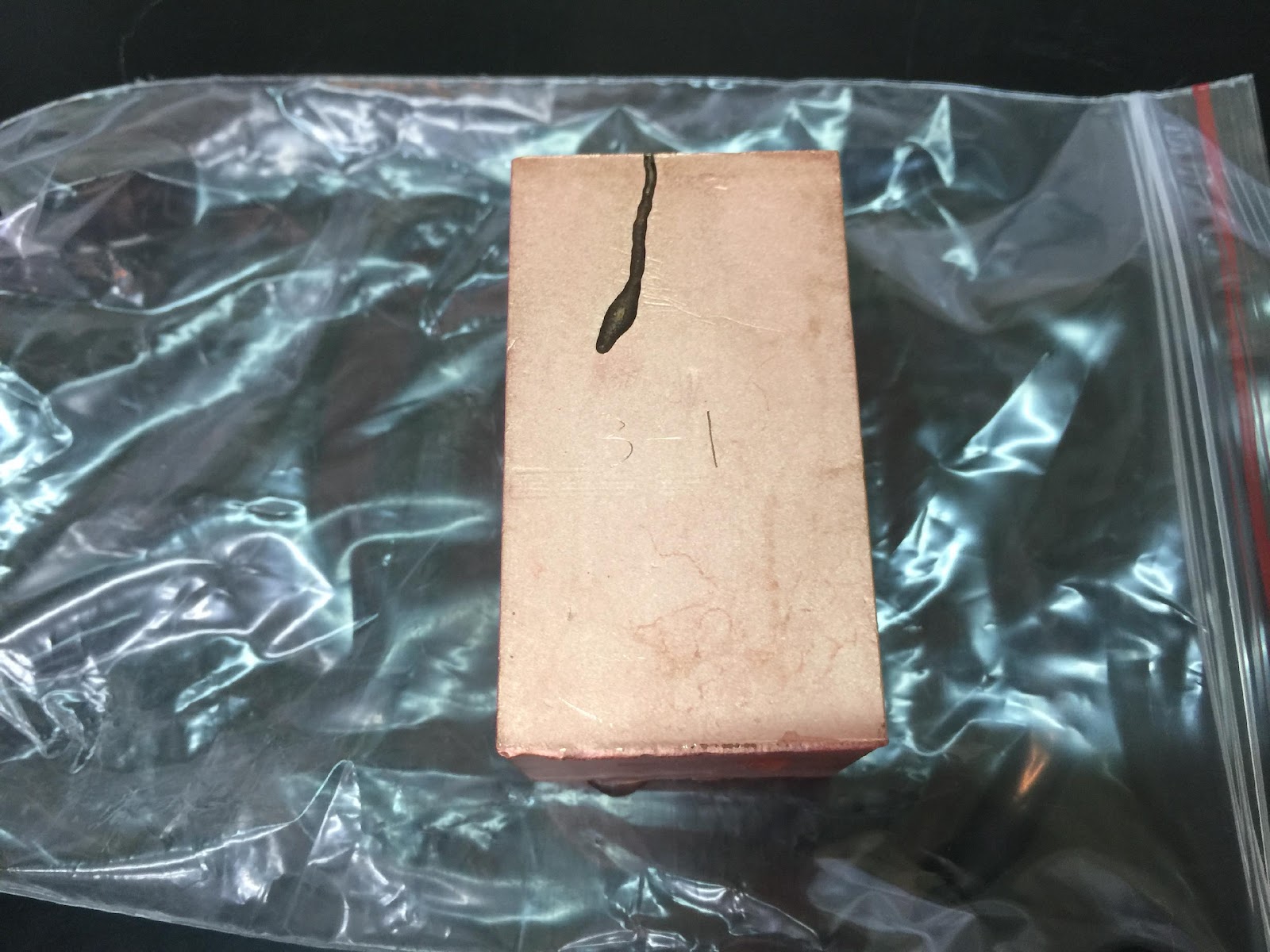

Before treatment with COP01 alone
after treatment
Before treatment with COP01 alone
after treatment
After soaking COP01, there is no significant difference in surface color and gloss.
The actual test, standing at room temperature, found that after 6 months of storage, it can also effectively prevent the copper block from continuing to oxidize and blacken.
